MODA

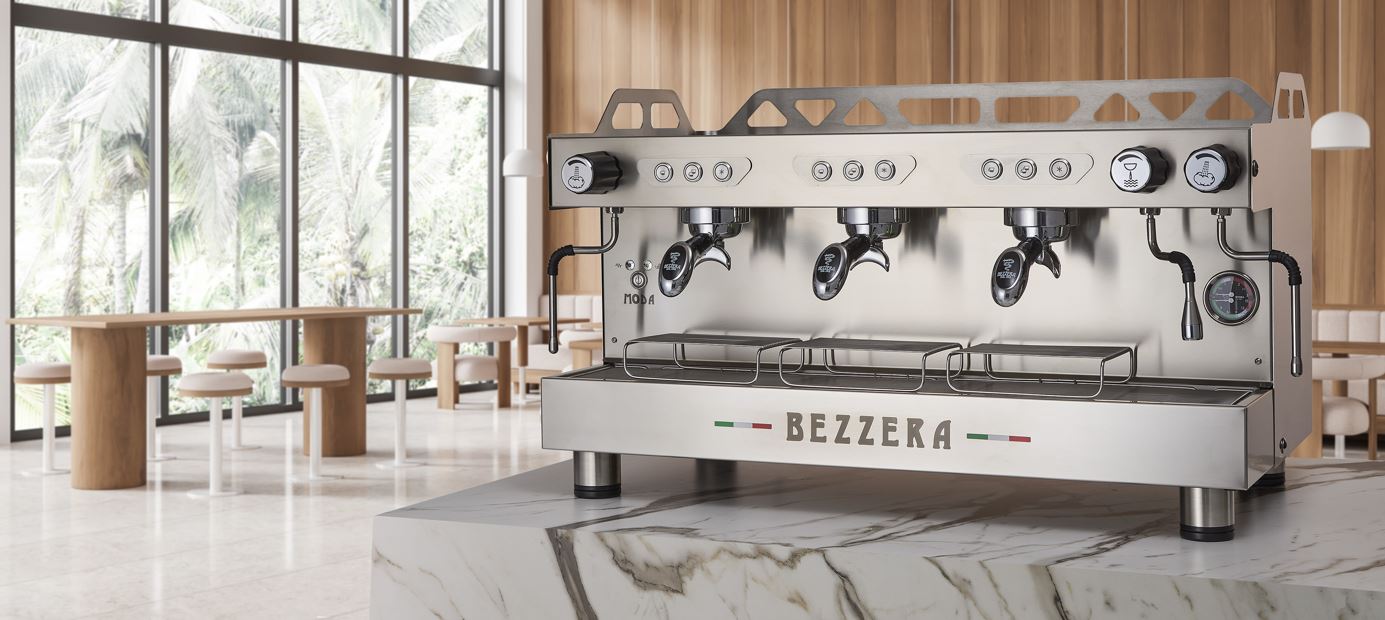

The new MODA espresso coffee machines range resumes main BEZZERA’s distinctive marks: reliability, robustness, versatility.

RELIABILITY

a selection of top quality components grants the performances in all working conditions.

ROBUSTNESS

MODA body is made of stainless steel AISI 304 (14301).

VERSATILITY

the large working area and the special grids allow to use up to 13 cm high cups.

MODA DE

In DE electronic version, a control box manages the coffee dosing programmed by the user, through an accurate volumetric system.

MODA PM

In PM semi-automatic version, coffee dosing is operated by an on/off push button which activates the pump and a solenoid valve to start the coffee flow.

TECHNICAL FEATURES:

HEAT EXCHANGE: Operated with an hydraulic circuit separated from the boiler, coffee is always prepared with fresh water.
THERMOSTATICALLY CONTROLLED GROUP: The 100W electrical resistance keeps the group temperature stable, even under heavy duty conditions.
INSULATED COPPER BOILER: Enables the optimum steam and hot water productivity; levels are automatically managed by a control box.
SAFETY: Double safety system, guaranteed by the boiler high temperature cut-off thermostat and the hydraulic overpressure valve.

		1GR	2GR	3GR
Power Supply	V~/Hz	110 - 120 / 50-60Hz
Resistance	W	1400	2600	3000
Nominal Power	W	1700	3050	3600
Power Supply	V~/Hz	230V / 50-60 Hz 220 - 415 / 50-60 Hz
Resistance	W	2025	5020	5020
Power Supply	W	2300	5500	5600
Boiler	l	5	11	17
Width	mm	570	750	960
Depth	mm	550	550	550
Height	mm	515	515	515
Net Weight	kg	45	59	74
Gross Weight	kg	55	71	87
Load Connection		G 3/8"
Drain Connection		G 3/4"
