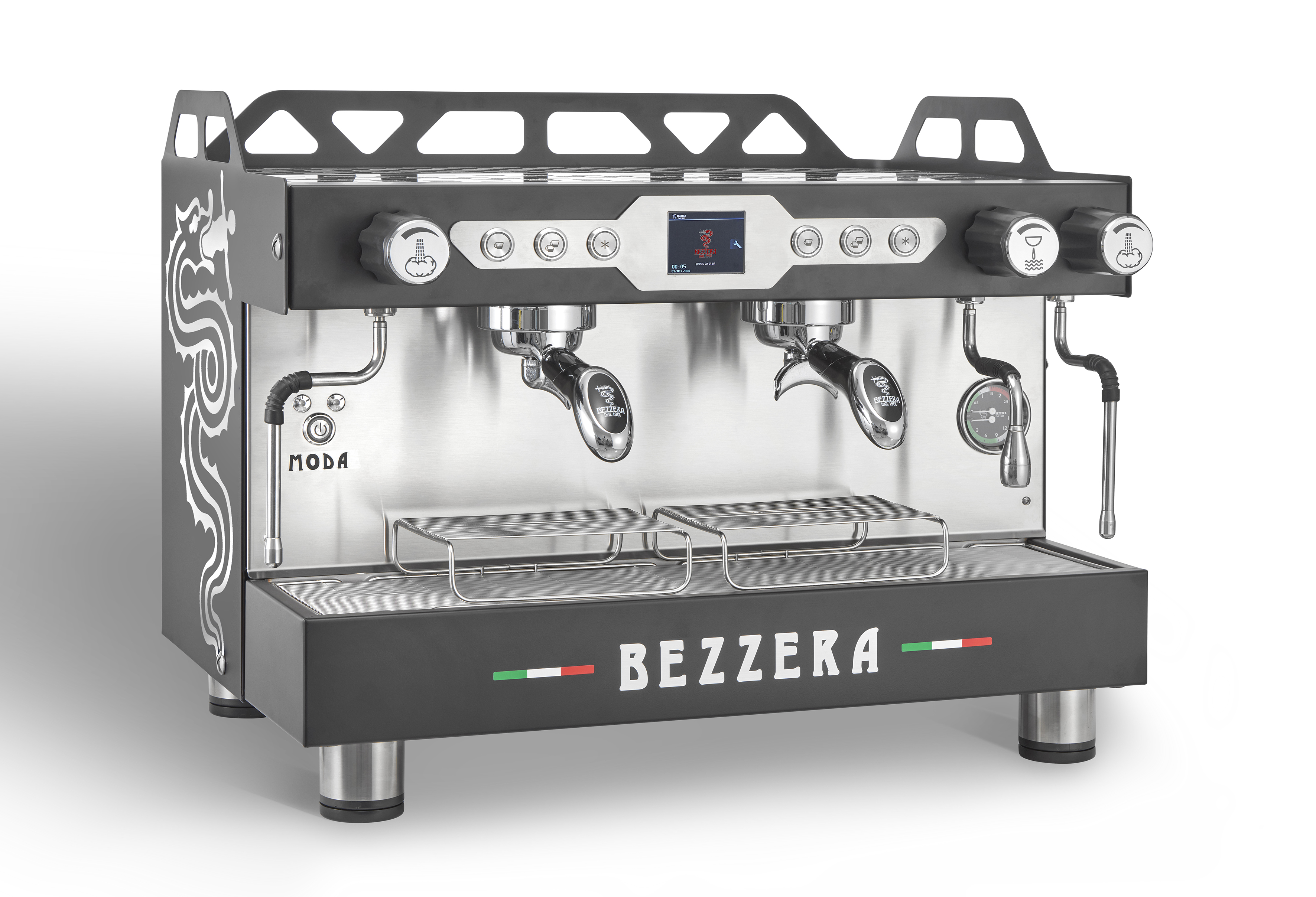

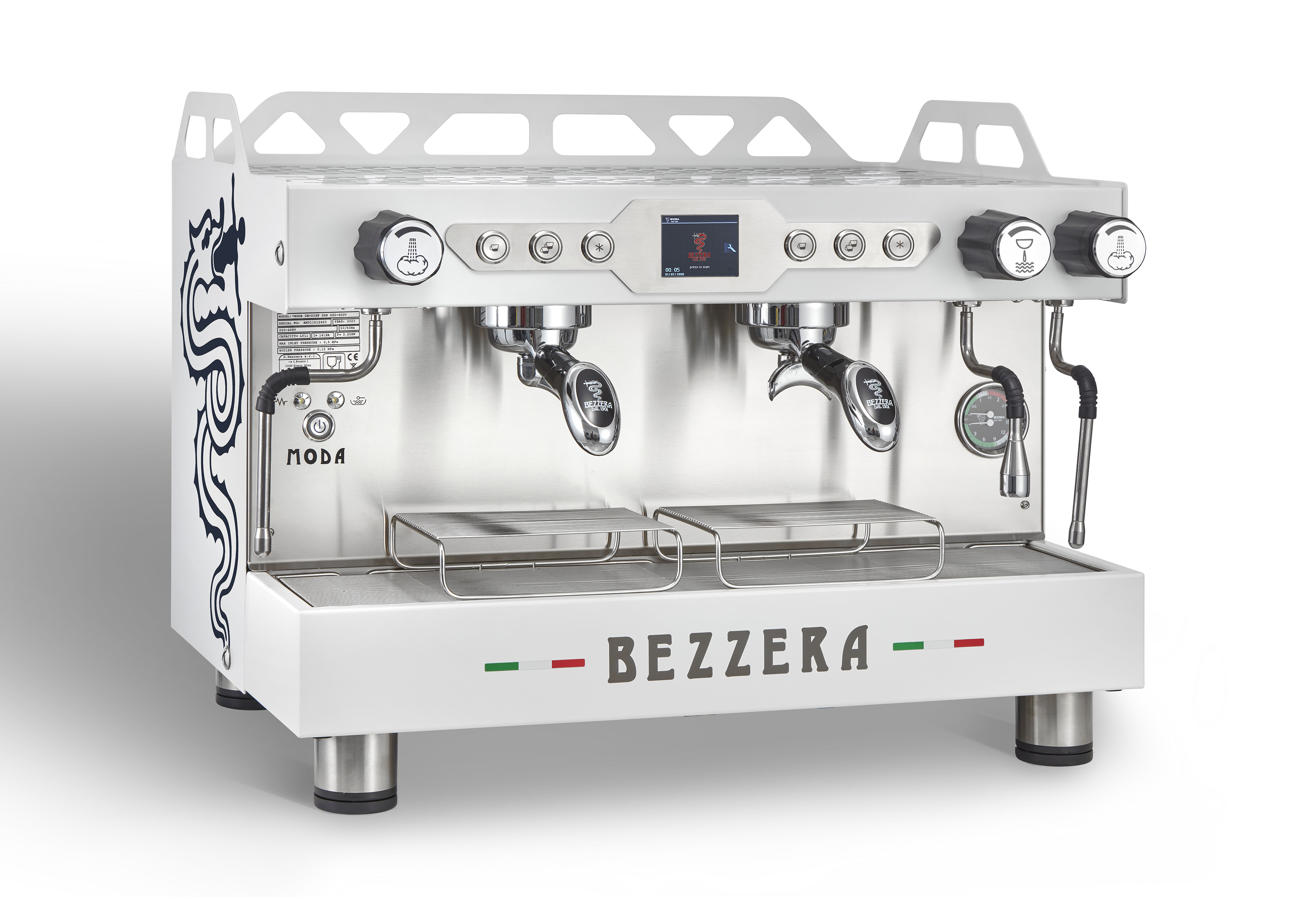

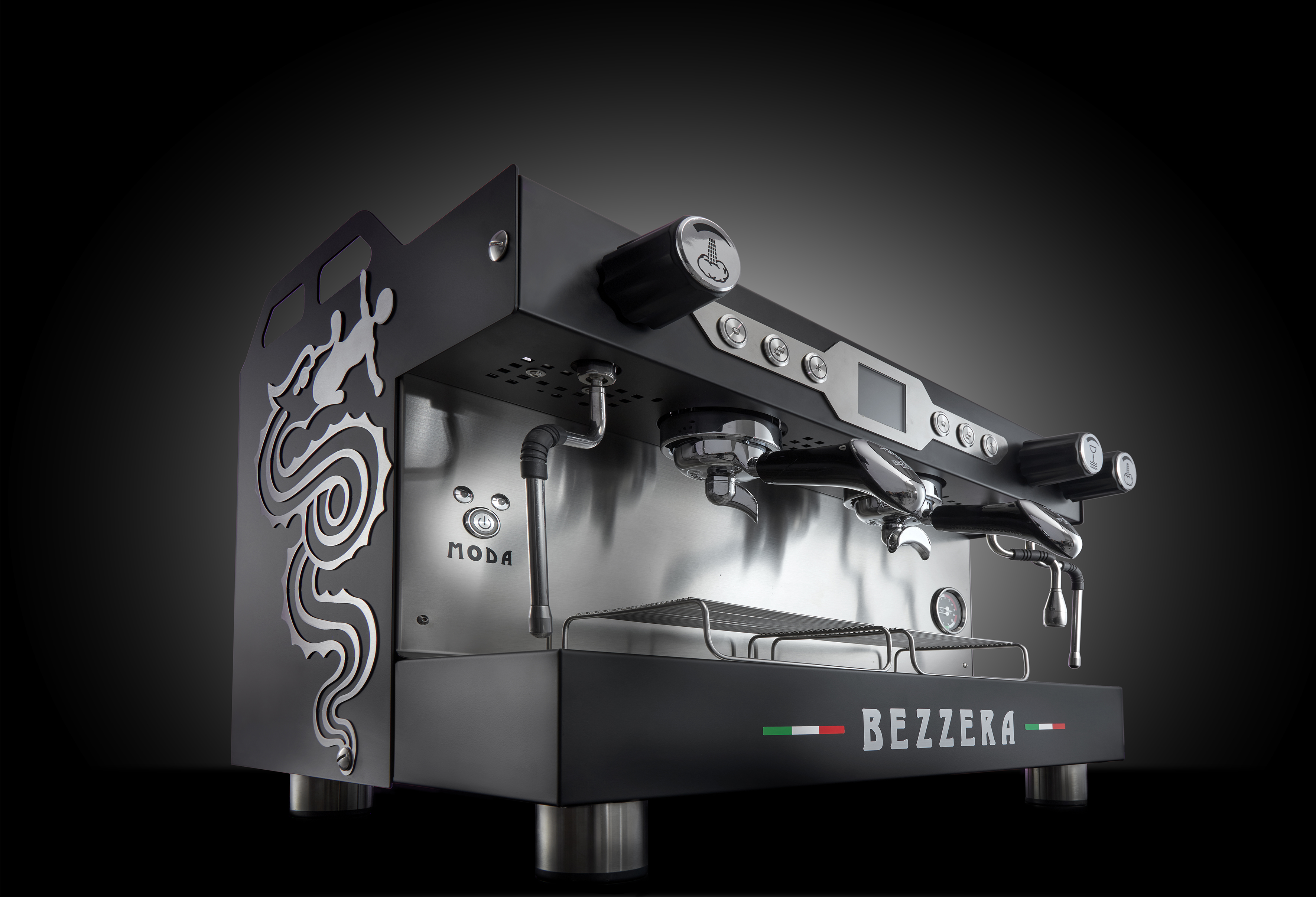

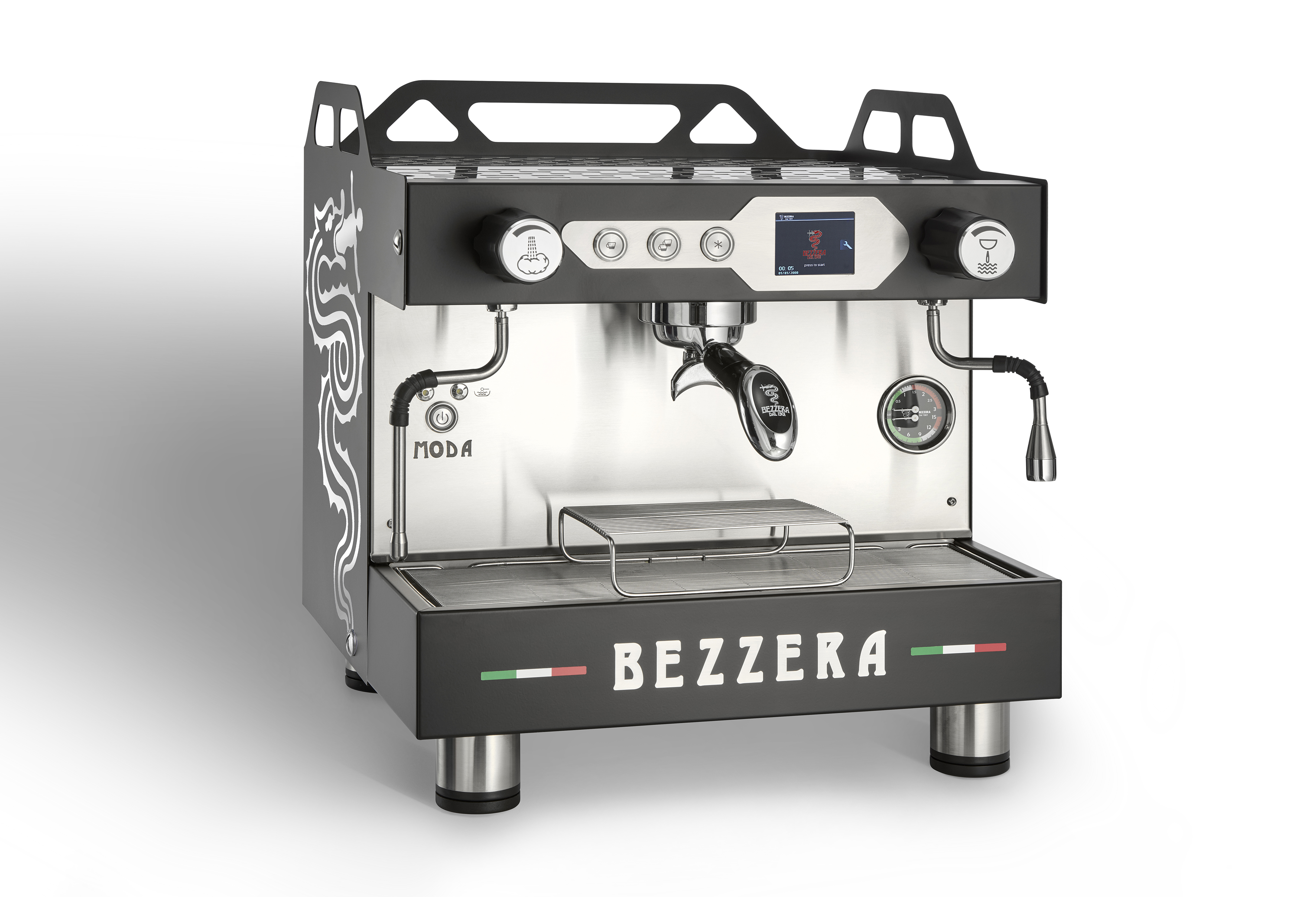

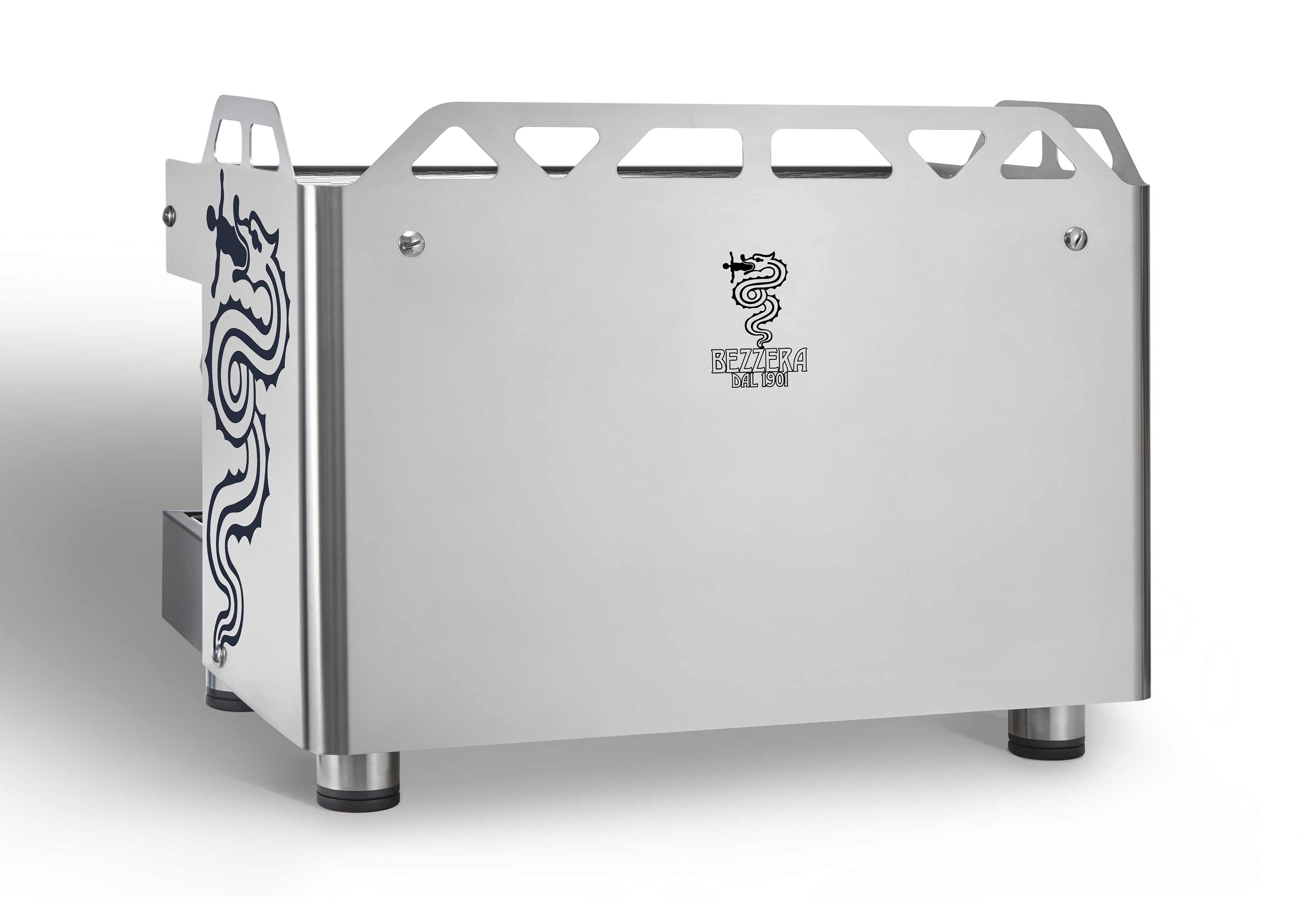

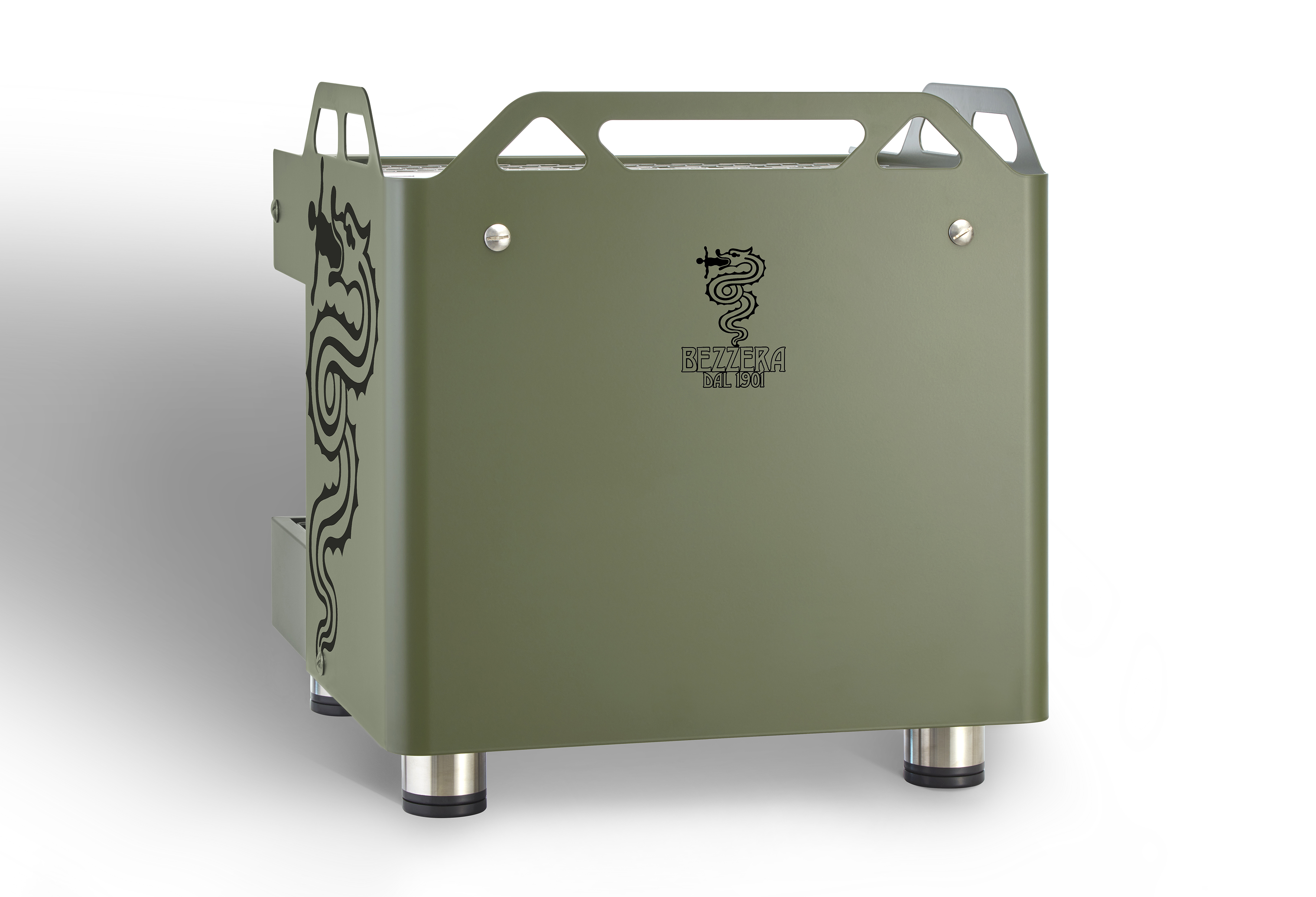

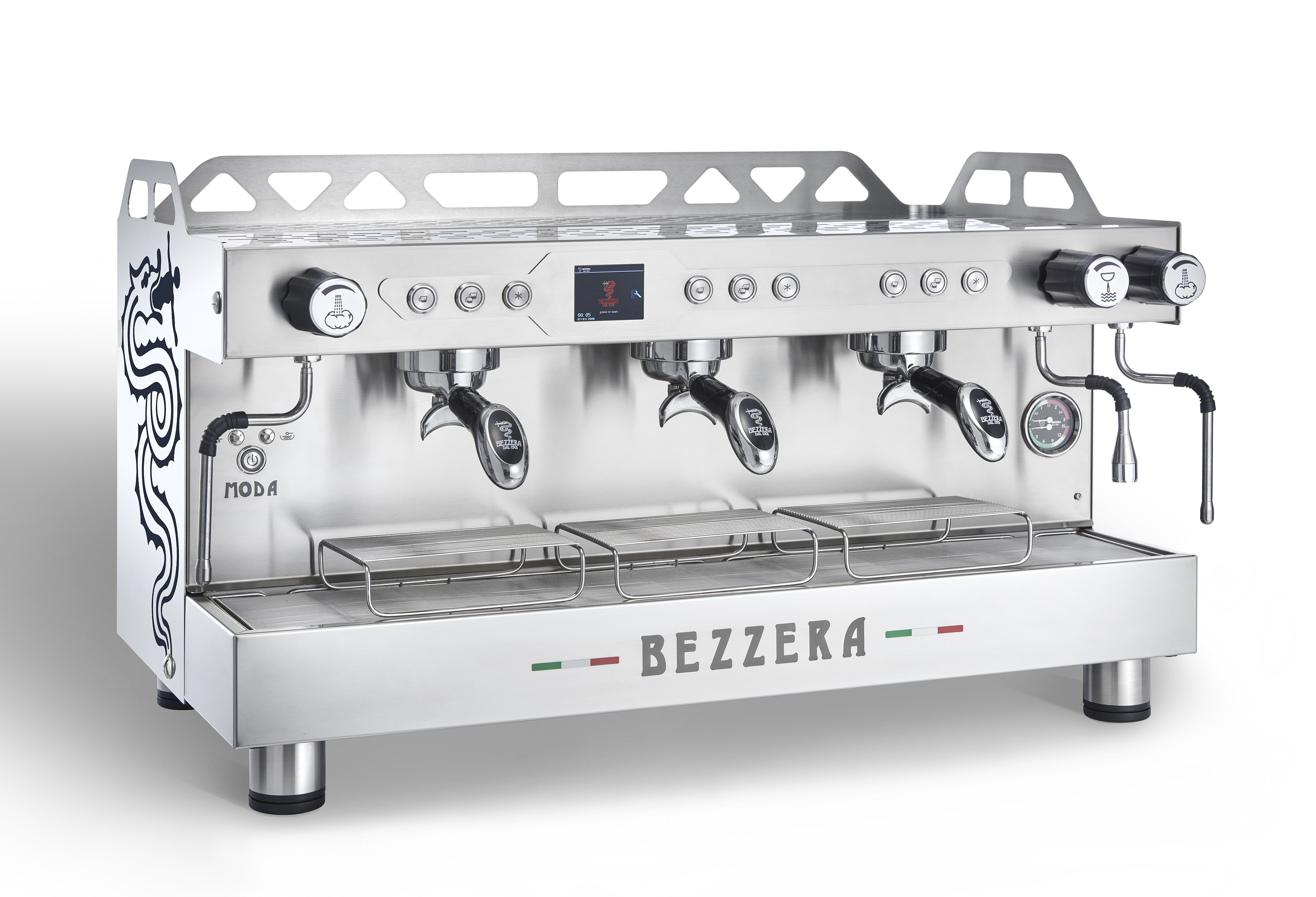

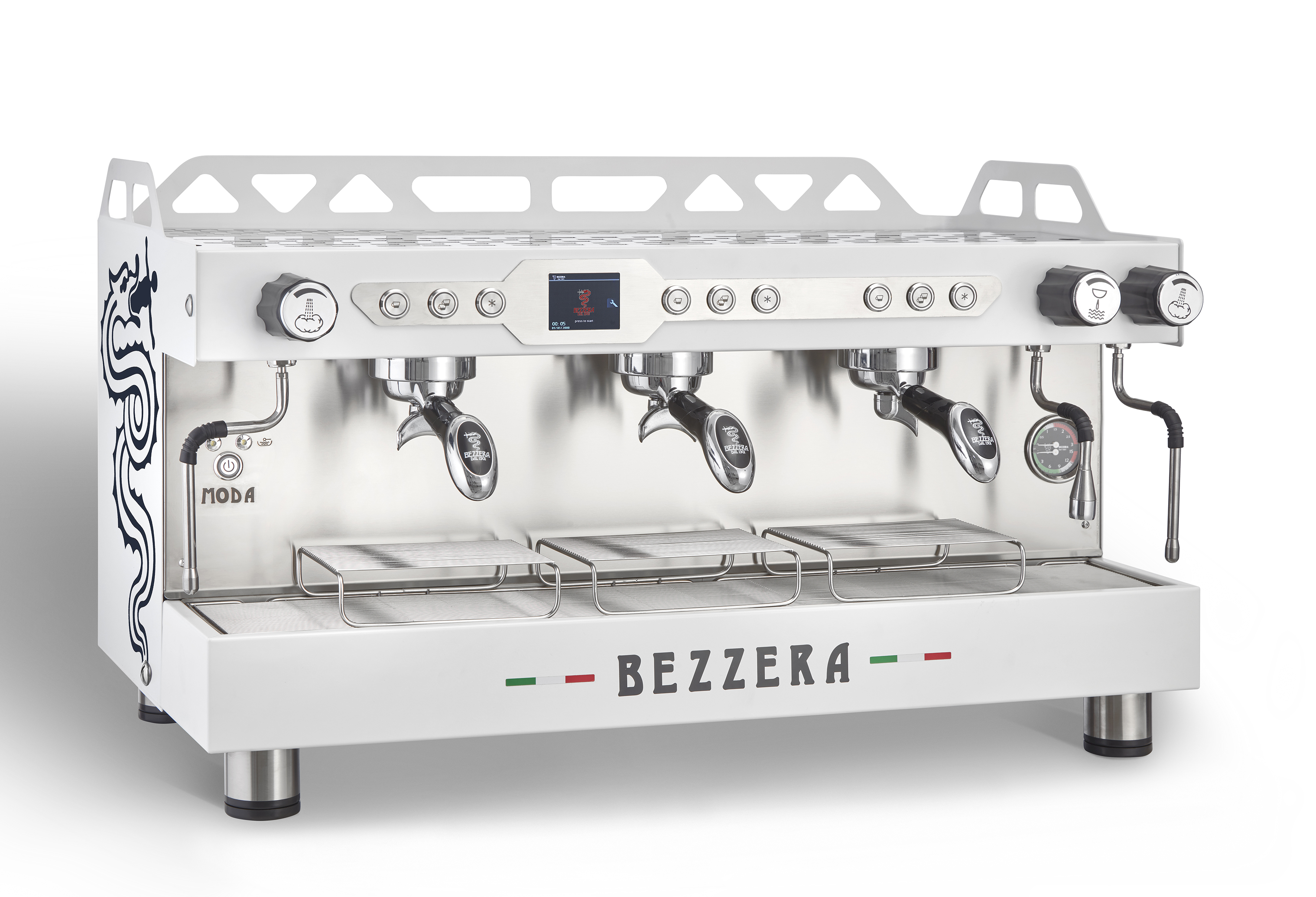

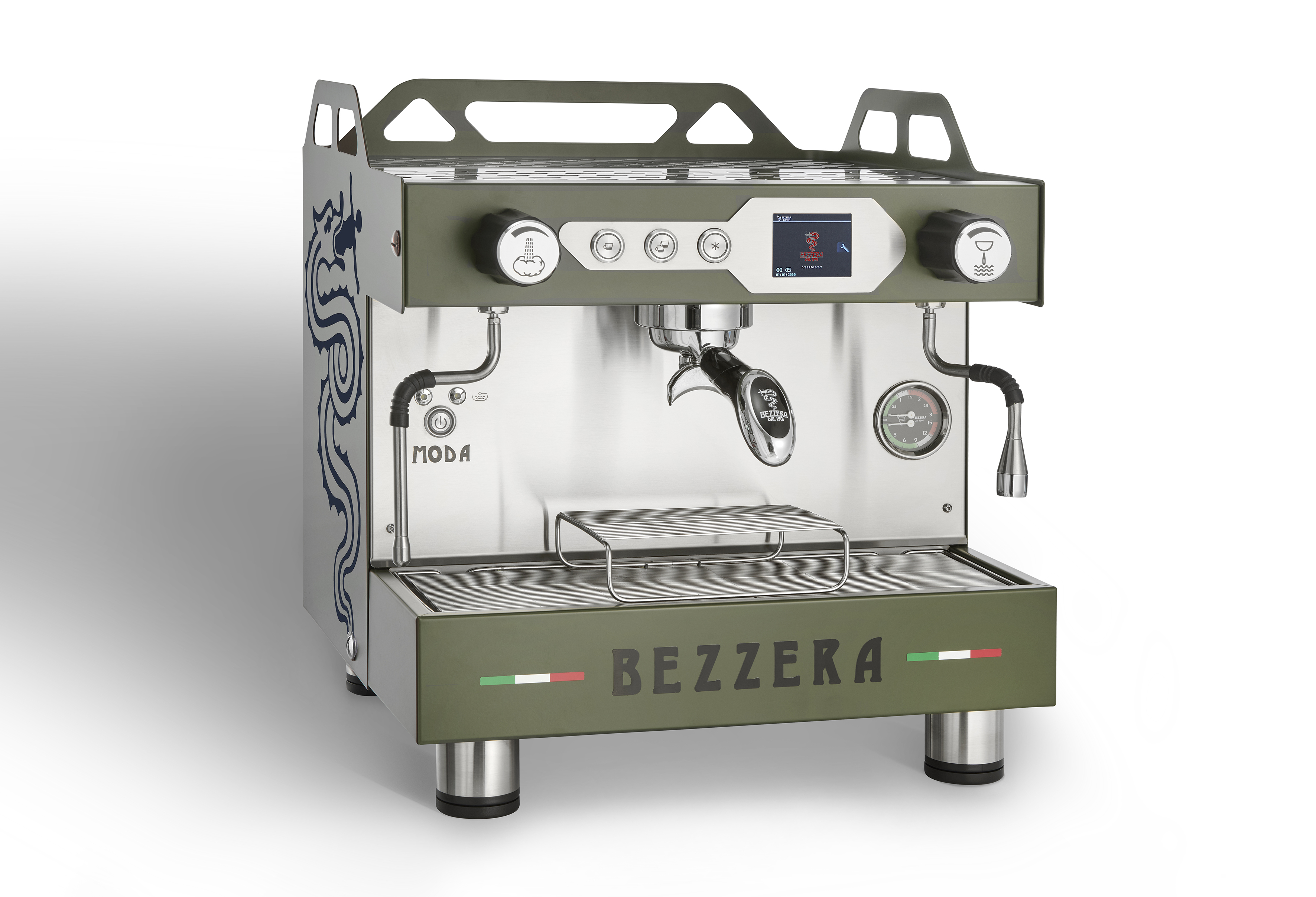

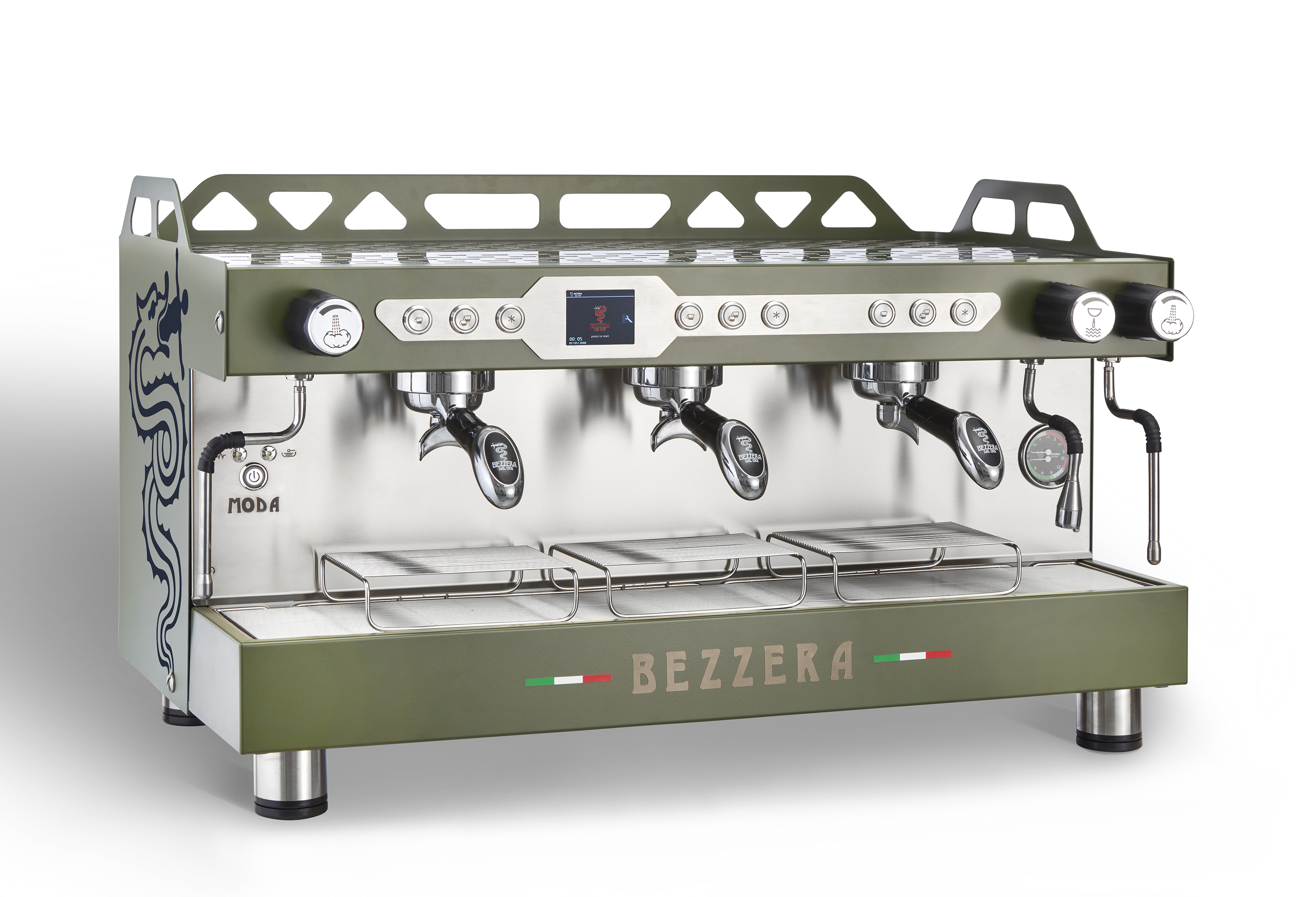

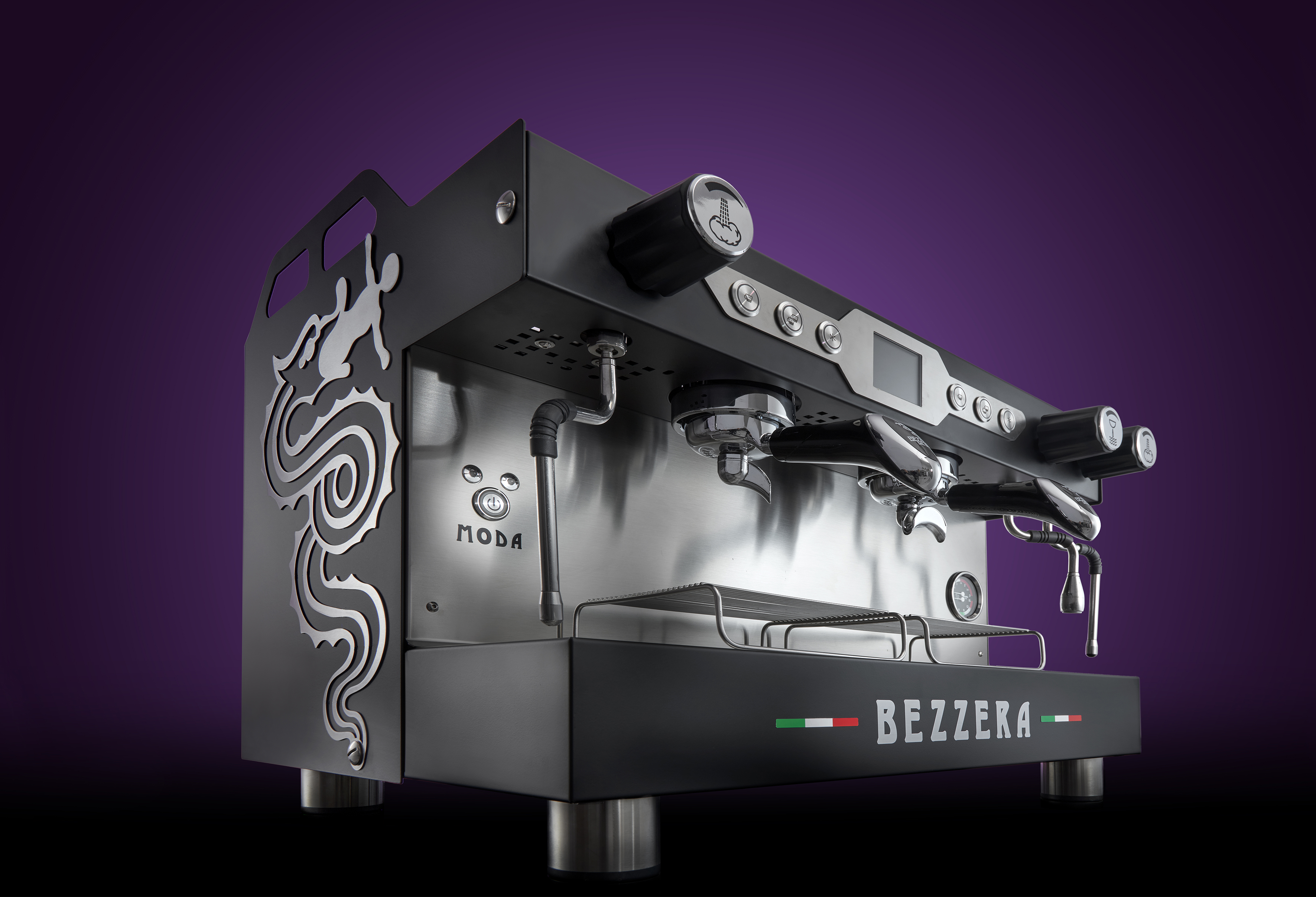

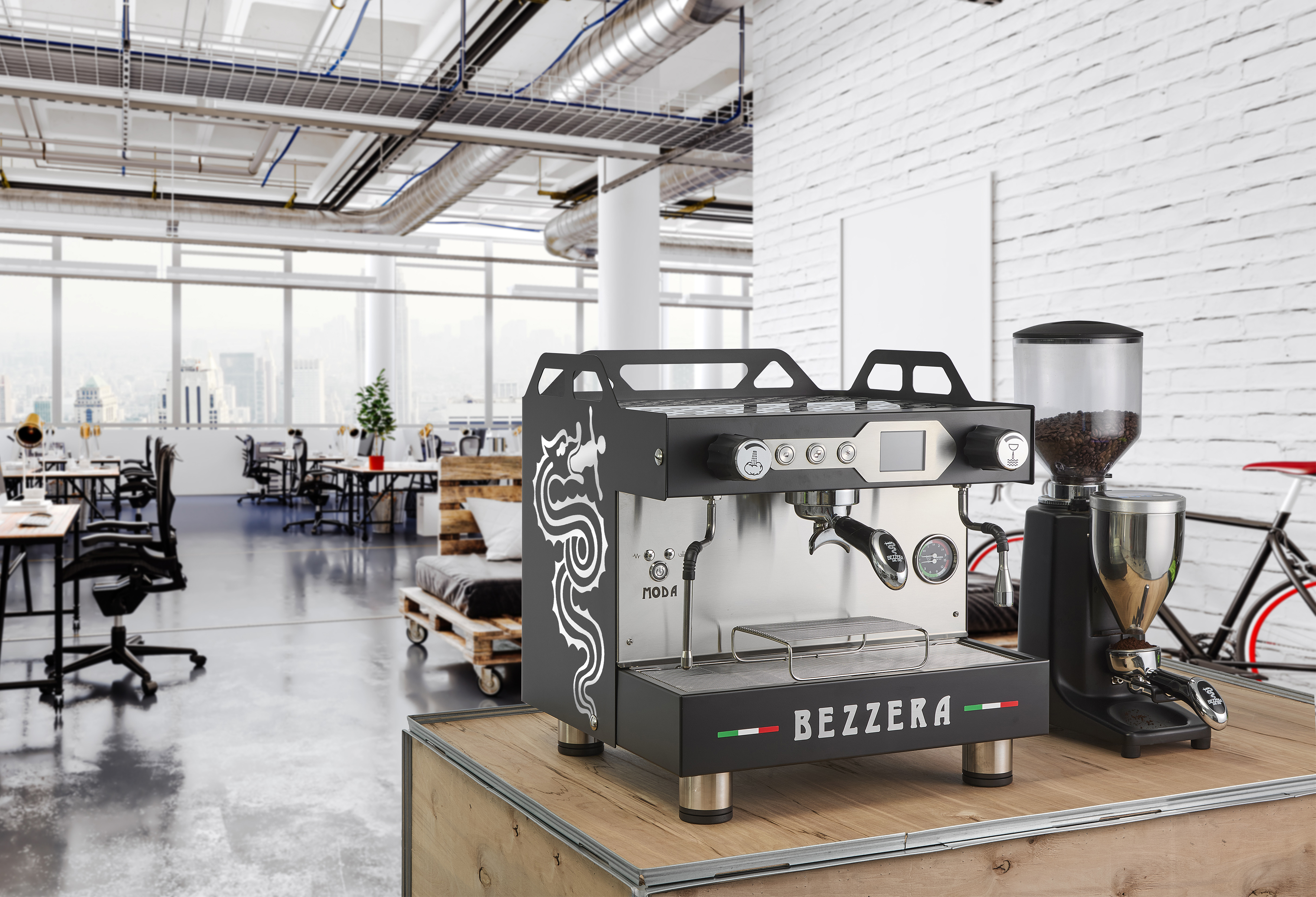

MODA PID DISPLAY everything under control!

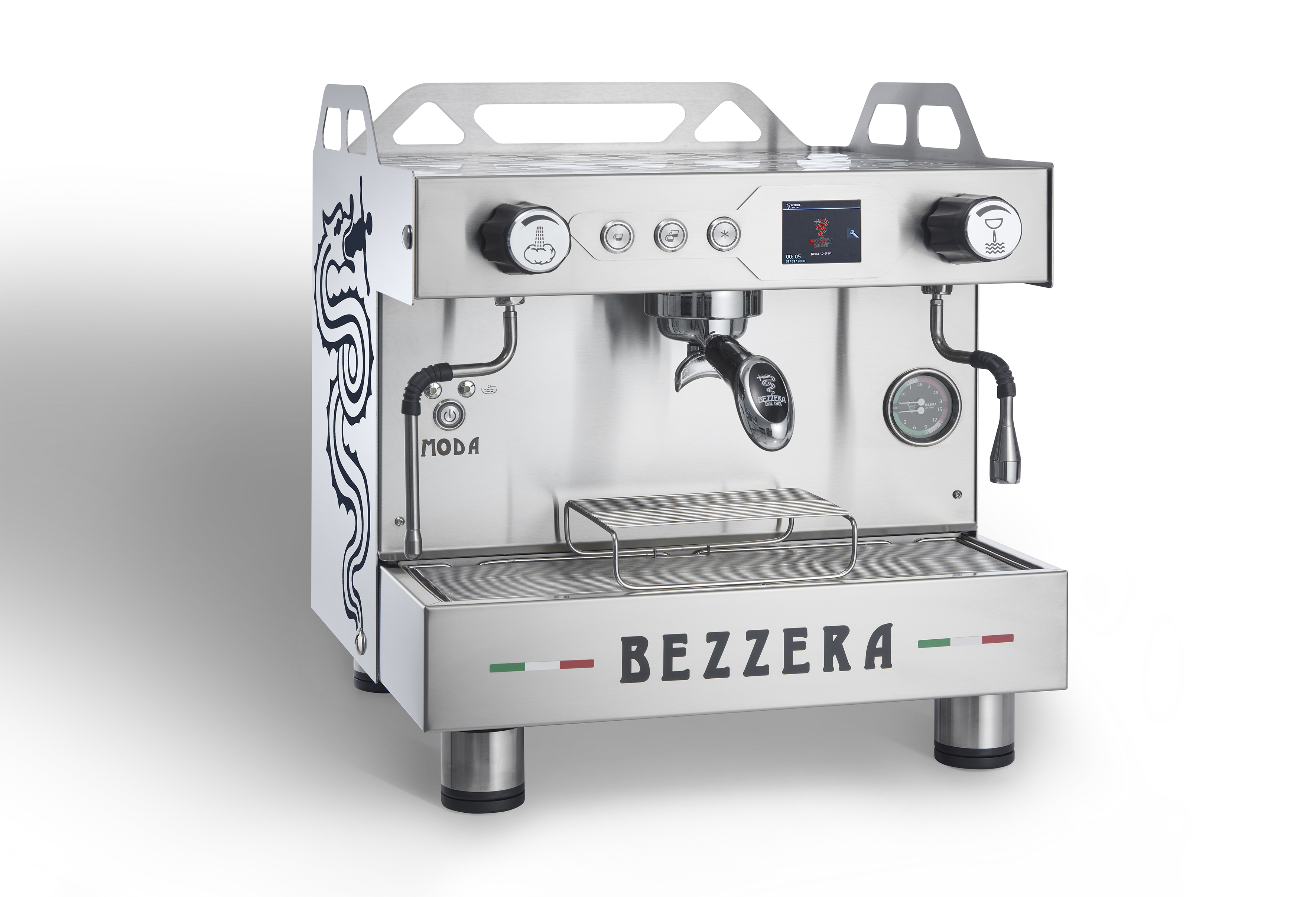

MODA PID DISPLAY this new espresso coffee machine line integrates into its simple software everything to meet the needs of professional baristas.
MODA PID line is available in Volumetric Electronic Dosing version; the electronic board manages the coffee doses volume programmed by the user.
In addition to the proven ergonomics and heavy dutiness of the BEZZERA machines, this model is equipped with a practical integrated TFT display, allows you to program important parameters and functions:

Independent brewing unit temperature setting by PID thermostat.
Brewing timer.
Auto On-Off system.
Programmable pre-infusion.
Coffee counter.
Group washing program.

MAIN TECHNICAL FEATURES:

THERMOSTATICALLY CONTROLLED GROUPS: The 100W electrical resistance keeps the group temperature stable, even under heavy duty conditions.
COPPER INSULATED BOILER: Less power consumption more productivity.
HEAT EXCHANGERS: Operated with an hydraulic circuit separated from the boiler, coffee is always prepared with fresh water.
SAFETY: Double safety system, guaranteed by the boiler high-temperature cut-off thermostat and the hydraulic overpressure valve.
VERSATILITY: A selection of top quality components grant the performances in all working conditions.
ROBUSTNESS: Chassy and stucture are made of top quality material.
RELIABILITY: A selection of top quality components grant the performances in all working conditions.

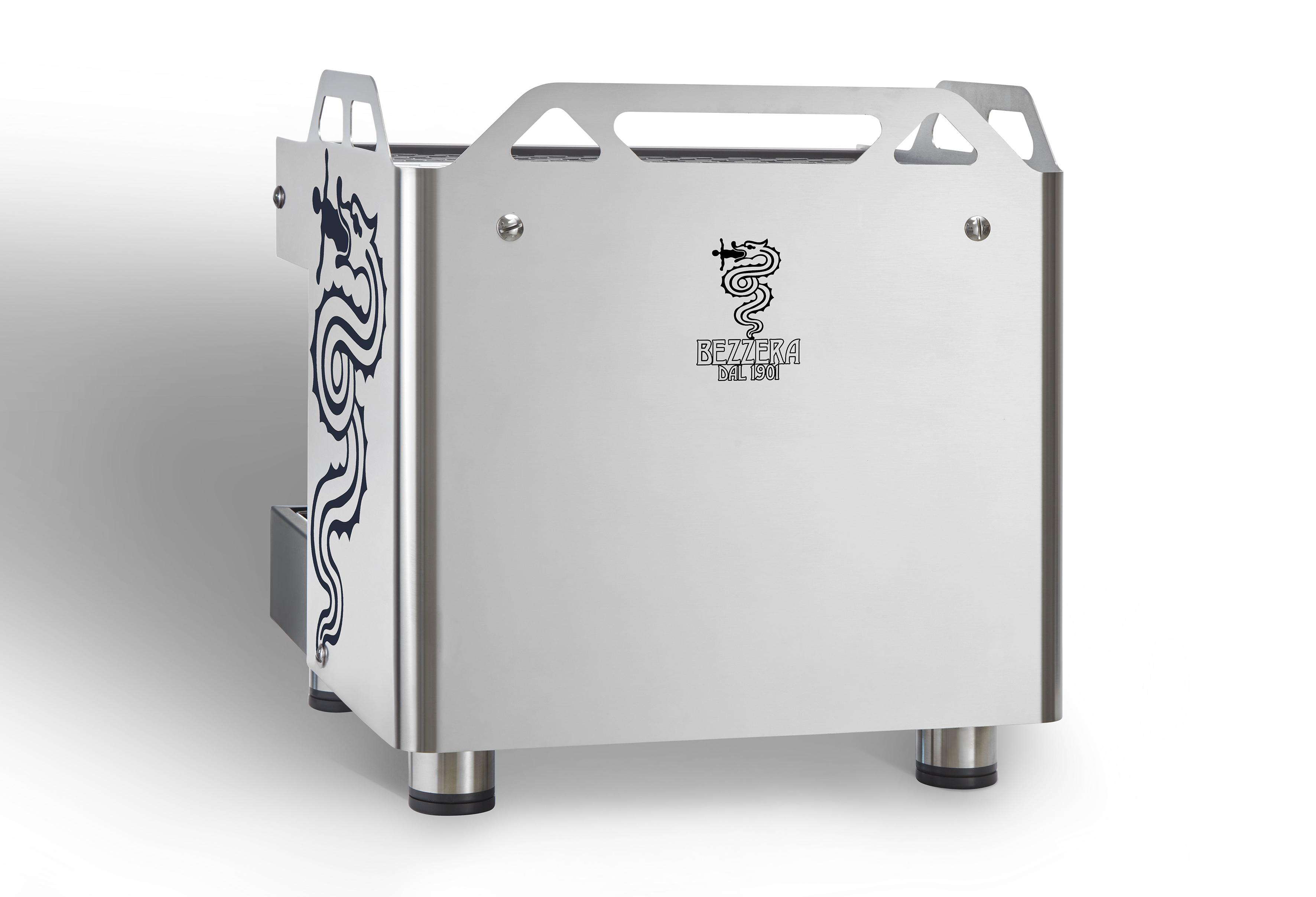

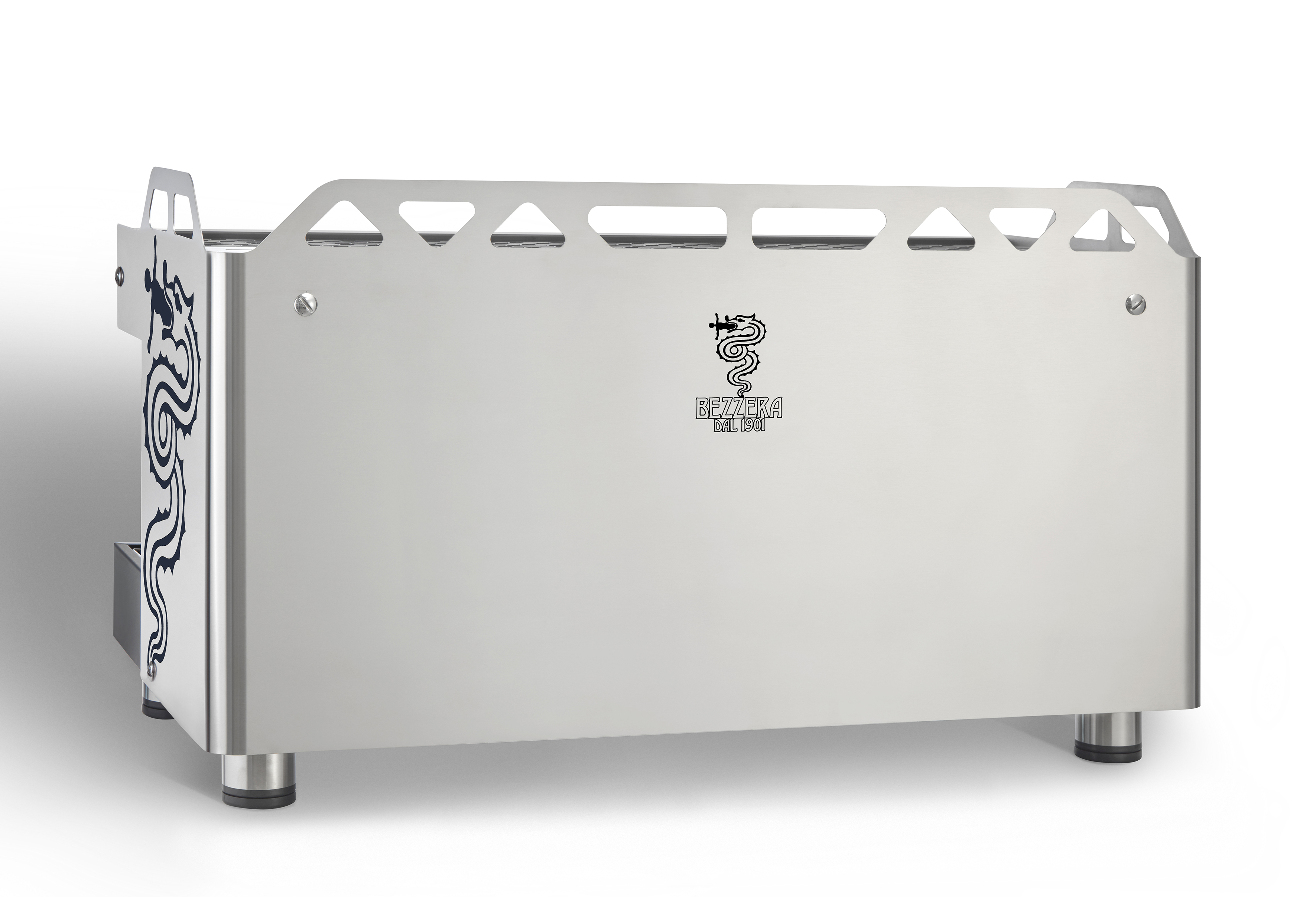

CONSTRUCTION DETAILS: Painted steel plate body and satined stainless steel AISI 304 (14301) and copper hydraulic system.

		1GR	2GR	3GR
Power Supply	V~/Hz	110 - 120 / 50-60Hz
Resistance	W	1400	2600	3000
Nominal Power	W	1700	3050	3600
Power Supply	V~/Hz	230V / 50-60 Hz 220 - 415 / 50-60 Hz
Resistance	W	2025	5020	5020
Nominal Power	W	2300	5500	5600
Boiler	l	5	11	17
Width	mm	570	750	960
Depth	mm	550	550	550
Height	mm	515	515	515
Net weight	kg	45	59	74
Gross weight	kg	55	71	87
Load Connection		G 3/8"
Drain Connection		G 3/4"
